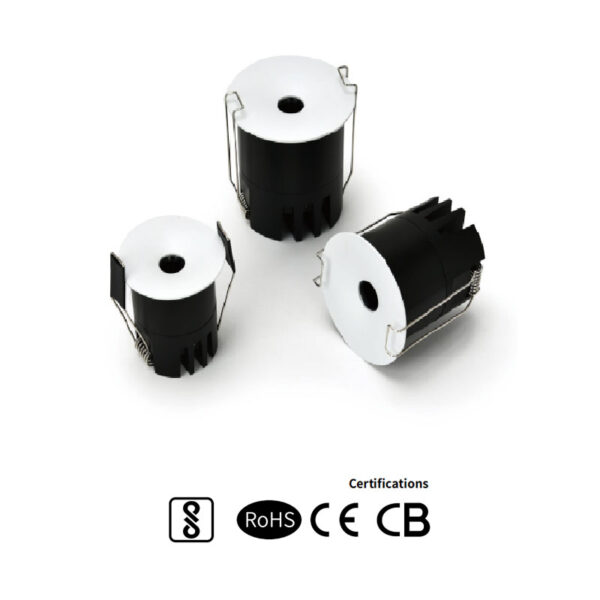

By Series Trimless Recessed Downlight
Model No: MAG-BY-P
Highlight features with the sleek and powerful BY Series Trimless Recessed Downlight. This round, single-head fixture is designed for a seamless, plaster-in installation, appearing flush with the ceiling. It is available in three sizes: a (10W, MAG-BY-P-D45), (15W, MAG-BY-P-D55), and (20W, MAG-BY-P-D75) model, offering different lumen packages for various needs. It delivers precise, focused illumination with a fixed 24° beam angle and excellent color rendering (CRI≥90). The trimless design features a crisp Sandy White/Black finish and flexible CCT options (3000K/4000K/6500K), making it perfect for high-end residential, commercial, or gallery applications where minimal visual intrusion and focused accent lighting are desired.
|
Model |
Wattage |
Cut-out Size |
Dimensions |
Voltage |
Color |
CRI |
1 CCT |
3 CCT |
Beam Angle |
Installation Method |
|
MAG-BY-P-D45 MAG-BY-P-D55 MAG-BY-P-D75 |
10W 15W 20W |
D45 D55 D75 |
D56*H73mm D66*H77mm D86*H80mm |
DC220-240V DC220-240V DC220-240V |
Sandy White/Black Sandy White/Black Sandy White/Black |
Ra≥90 Ra≥90 Ra≥90 |
3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K |
3000K-6500K 3000K-6500K 3000K-6500K |
24° 24° 24° |
Recessed Recessed Recessed |
