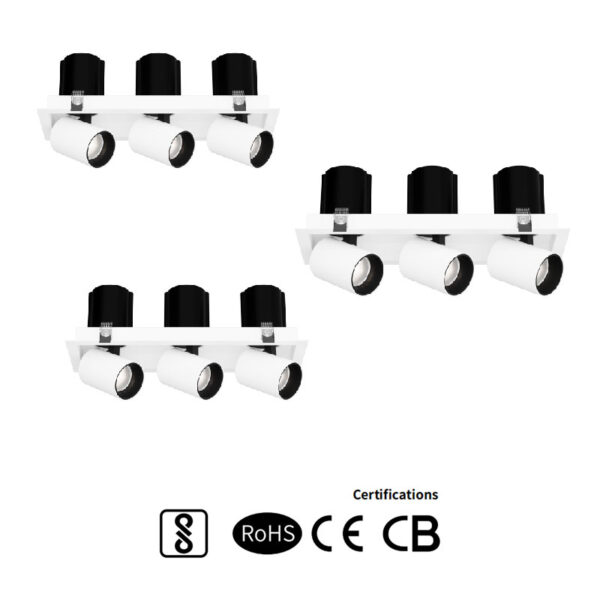

LS Series Square Triple-Head Extended SpotLight
Model No: MAG-LS-W-3
Illuminate large areas or multiple features with the high-performance LS Series Square Triple-Head Extended Spotlight. This recessed fixture combines three independently adjustable heads on a single, clean square trim, offering superior versatility and lighting power. With total outputs ranging from 3*12W to 3*30W, a concentrated 24° beam angle, and high CRI≥90, it provides exceptional, color-accurate accent lighting. The flexible CCT options and sleek Sandy White/Black design make it ideal for comprehensive lighting plans in retail, hospitality, or large residential spaces.
|
Model |
Wattage |
Cut-out Size |
Dimensions |
Voltage |
Color |
CRI |
1 CCT |
3 CCT |
Beam Angle |
Installation Method |
|
MAG-LS-W12-3 MAG-LS-W18-3 MAG-LS-W30-3 |
12W*3 18W*3 30W*3 |
W80*L225 W100*L285 W120*L340 |
D90*H240mm D115*H300mm D140*H370mm |
DC220-240V DC220-240V DC220-240V |
Sandy White/Black Sandy White/Black Sandy White/Black |
Ra≥90 Ra≥90 Ra≥90 |
3000K/4000K/6500K 3000K/4000K/6500K 3000K/4000K/6500K |
3000K-6500K 3000K-6500K 3000K-6500K |
24° 24° 24° |
Recessed Recessed Recessed |
